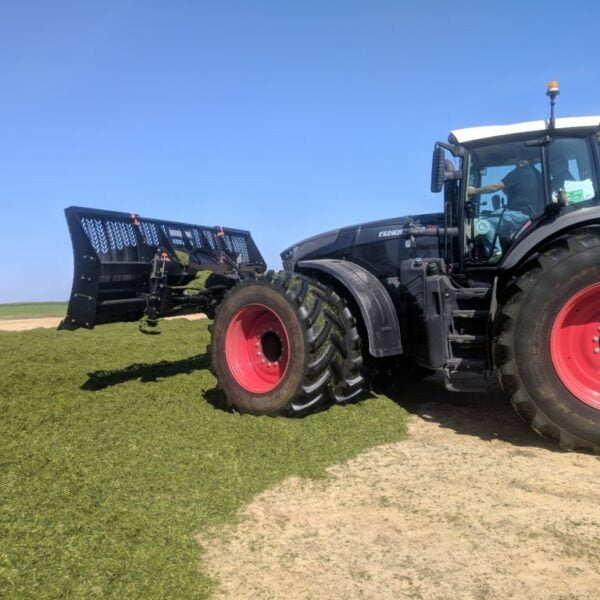

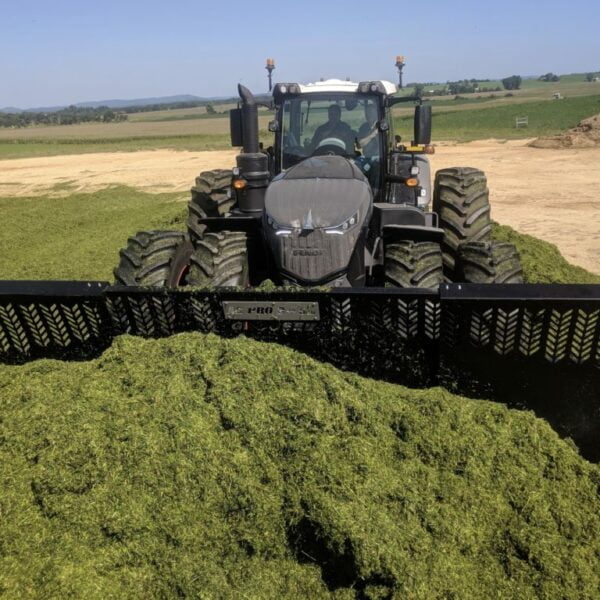

Adjustable Dozer Blade
You won’t find a better adjustable-width silage dozer blade anywhere. The AG PRO 3-5, 12-20, and AG240 9-16 combine maximum capacity with exceptional maneuverability to take on the biggest silage piles.
Operators can extend and retract the blade on the fly with its hydraulic system, either to increase efficiency on the pile or to comply with regulations while heading down the road.
Our 12-20 AG PRO Adjustable Silage Dozer Blade is an AE50 Outstanding Innovations Award holder, presented by the ASABE.
We’ve been engineering, testing, and considering your feedback on our dozer blades for over 40 years.
Features
- Hydraulically adjustable width
- Vertical paralift design Grouser-Paralift-Advantage
- Single lever quick attach blade
- Easy adjustable skid shoes with replaceable wear pads
- Custom nameplate
Specifications 9-16
- Horsepower: 350–500 (Row Crop)
- Blade widths: 9’–16′
- Blade capacity: .82 cu yds per ft.
- Blade height: 60″
- Top extension: Included
- Lift height: 36″ – 38″
- Grade capacity: 42%–50%
- In-Ground: 11″–13″
- Ground clearance: 20″ – 22″
- Angle: +/-30°
- Tilt: +/-10°
- Lift cylinder: 5″ x 12″
- Cutting edge: 1/2″ x 6″ Reversible
- Transport width: 9′
Specifications 3-5 (meters)
- Horsepower: 450–700 (4WD)
- Blade widths: 3m–5m (9.5′-17.5′)
- Blade capacity: 1.2 cu yds per ft.
- Blade height: 75″
- Top extension: Included
- Lift height: 54″ – 56″
- Grade capacity: 40%–58%
- In-Ground: 20″–22″
- Ground clearance: 20″ – 22″
- Angle: +/-30°
- Tilt: +/-10°
- Lift cylinder: (2) 4,5″ x 18″
- Cutting edge: 3/4″ x 8″ Reversible
- Transport width: 9′
Specifications 12-20
- Horsepower: 450–700 (4WD)
- Blade widths: 12’–20′
- Blade capacity: 1.2 cu. yards per foot
- Blade height: 75″
- Top extension: included
- Lift height: 54″–56″
- Grade capacity: 40%–58%
- In-ground: 20″–22″
- Ground clearance: 20″–22″
- Angle: +/-30°
- Tilt: +/-10°
- Lift cylinder: (2) 4.5″ x 18″
- Cutting edge: 3/4″ x 8″ Reversible
- Transport width: 12′
AG PRO Adjustable Blade Literature
